How Air Permeability in Valve Sacks Prevents Bag Rupture During High-Speed Filling
Air permeability is the controlled gas transmission rate of sack kraft substrate, measured via the Gurley test, that permits entrapped interstitial air from powdered bulk solids to escape during rapid filling. Insufficient de-aeration generates transient internal pressure spikes exceeding the sack's burst index, causing seam split or sidewall rupture on rotary and auger filling lines. This article outlines permeability control methods, balanced moisture barrier limits, and factory validation protocols for valve sack converters and bulk powder buyers.
1. Transient Pressure Build-Up: Root Cause of Valve Bag Failure on High-Speed Fillers
Auger, impeller, and air-type filling machines inject cement, lime, talc, pigment, and mineral powder at cycle rates from 120 to 420 bags per hour. Fine powder carries trapped air into the sack cavity; valve closure occurs before this air dissipates. Internal pressure rise does not correlate directly with static burst strength alone. Sacks with high burst index but low air permeability still rupture because pressure cannot vent before the fill cycle completes. Two common failure modes observed in Win Dragon incoming field samples:
Cross-seam tear along the pinch valve perimeter
Mid-panel delamination between plies of multiwall kraft construction
Field test dataset: At 300 bags/hour filling rate, sacks with Gurley air resistance > 80 s/100 mL show 11–17% rupture incidence; sacks tuned to 18–30 s/100 mL reduce failure rate below 0.4% under identical fill weight and powder bulk density.
2. Two Industrial De-Aeration Solutions: Micro-Perforation vs Porous Sack Kraft Base Paper
Two production routes deliver controlled air permeability for valve sacks. Each carries trade-offs for moisture ingress, printability, and runnability on converting lines.
| Parameter | Micro-perforated Multiwall Sacks | Porous Sack Kraft Base Paper (No Perforation) |
|---|---|---|
| Gurley air resistance | 10–22 s/100 mL | 15–30 s/100 mL |
| Typical hole dimension | 0.12–0.25 mm diameter | Intrinsic fibre pore structure, no drilled holes |
| Moisture vapour transmission | Higher; direct vapour path through holes | Lower; controlled through fibre mat only |
| Flexo print quality | Risk of dot gain over perforation zones | Stable Bekk smoothness 18–28 s, consistent print |
| Rework risk during converting | Hole blockage by powder dust | No blocking risk |
| Preferred application | Low-humidity warehouse, fast-fill mineral powders | Cement, hydrated lime, moisture-sensitive fillers |

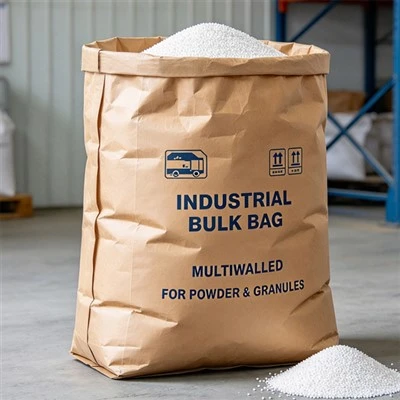

Micro-perforation applies precision pin penetration across outer or intermediate plies after flexographic printing. Perforation pattern density is calibrated to avoid creating concentrated weak lines. Over-perforation lowers TEA and reduces drop-test performance. Porous sack kraft relies on adjusted wet-end refining, softwood pulp ratio, and press section dewatering settings to build uniform inter-fibre porosity. No secondary perforation step is required. [Insert Link: multiwall paper industrial bags /sack-kraft-paper-bag/multiwall-paper-bags/industrial-paper-bags.html]
3. Balancing Air Venting and Moisture Barrier: Critical Parameter Window
Permeability cannot be maximized without considering ambient relative humidity during transit and storage. High permeability accelerates water vapour uptake for hygroscopic powders, leading to caking and product rejection. Win Dragon engineering maintains a validated operating window for most mineral and chemical powder valve sacks:
Target Gurley air resistance: 15–30 s/100 mL
Maximum allowable WVTR for composite barrier ply: < 85 g/m²/24h at 23°C, 50% RH
Burst index minimum: ≥ 3.4 kPa·m²/g
TEA (machine direction): ≥ 175 J/m²
If the end user operates in tropical high-humidity zones, a selective inner PE dispersion coating can be applied. This coating blocks liquid water migration while preserving fibre-level air transmission for de-aeration. Full continuous plastic lamination is not recommended for high-speed filling, as it eliminates airflow.
4. Win Dragon Incoming & Finished Goods QC Protocol for Rupture Prevention
Every production run for de-aeration valve sacks undergoes a four-stage lab test sequence before container loading. Tests follow modified TAPPI standard methods for sack paper performance under dynamic filling conditions.
Gurley air resistance test, sampled at deckle edge, mid-web, and centre positions
Burst strength test, 10 specimens per production lot
Dynamic filling simulation: 300 bags/hour cycle with standard cement powder, monitored for pressure spike and rupture
72h humidity conditioning test at 28°C, 65% RH, followed by shake test for caking assessment
FAQ
H3: What is the MOQ for custom permeability valve sack orders?
MOQ for printed multiwall de-aeration valve sacks is 50,000 pieces. Unprinted blank stock for converters starts at 30,000 pieces. Lead time aligns with pulp stock availability and flexo plate setup.
H3: Can you adjust Gurley air resistance to match our existing filling machine speed?
Yes. Submit your fill cycle rate, powder bulk density, and target rupture rate. Our mill tunes base paper porosity or micro-perforation density and shares pre-production lab sample data before mass run.
H3: Do permeable valve sacks still meet FSC and FDA indirect food contact requirements?
Porous sack kraft and micro-perforated construction do not invalidate FSC chain-of-custody or FDA 21 CFR 176.170 compliance. Certificates are available for audit by your supply chain team.
Order a free sample kit for Lab Testing to run your own filling and humidity validation on our air-permeable valve sack materials.
